All WR-15 (50 - 75 GHz) V-Band ID:.148" x .074"

waveguide parts on this page are in stock now!

(All items on this page are offered for domestic USA sales only)

This table is sorted manually by manufacturer. NOTE:  Send us an  email if you would like a button added to a specific item.





APTEC . ELECTRONICS


WAVEGUIDE . Inventory Price List

price

qty loc buy now
Model Manufacturer Item Description

ea. US $

.

termination

unk WR-15 v-band 1.5 inch termination (domestic USA sales only) -image-

150

2+ v-band

WR-15 0.75" 45° twist section

Generic WR-15 v-band 0.75" 45° painted twist section UG-385/U (domestic USA sales only)

150

 v-band (2)

WR-15 1.0" 45° twist gold section

Generic WR-15 v-band 1.0" 45° twist gold section (domestic USA sales only)

150

 v-band (2)

WR-15 1.25" 45° twist gold section

Generic WR-15 v-band 1.25" 45° twist gold section (domestic USA sales only)

150

 v-band (1)

WR-15 12.0" straight section

Generic WR-15 v-band 12.0" silver plated painted straight section (domestic USA sales only)

150

SOLD SOLD

WR-15 45° twist & H-bend gold section

Generic WR-15 v-band H-bend with 45° twist gold section (domestic USA sales only)

175

 v-band (+)

WR-15 e-bend

unk WR-15 v-band e-bend (domestic USA sales only) -image- (shows both e and h bends)

125

1+ v-band

WR-15 h-bend

unk WR-15 v-band (domestic USA sales only) -image- (shows both e and h bends)

125

3+ v-band

15-1202

Aerowave WR-15 (domestic USA sales only) 2" section silver plate

100

2 v-band

15-2000

Aerowave WR-15 (domestic USA sales only) termination

150

3 v-band

15-2110/605

Aerowave WR-15 (domestic USA sales only) fixed attenuator

call

1 v-band .

15-3000/20

Aerowave WR-15 (domestic USA sales only)  directional coupler

350

1 v-band

15-5000

Aerowave WR-15 (domestic USA sales only) isolator

350

2 v-band

15-7025

Aerowave WR-15 (domestic USA sales only) standard gain horn (gold plated)

650

1 v-band
V12OFF -100CM  Anritsu DC- 67GHz V-band cable 100 cm --

CALL

3 .

SA-98

Adtec WR-15 v band level set attenuator

250

1+ mmw

15-1202

Aerowave WR-15 v band 2" silver straight section

100

1

580V/385

alpha industries WR-15 v band termination

175

3 mmw

1V-5F

baytron WR-15 detector mount

350

1

1V-5W

baytron WR-15 detector mount

350

1 .

3V-80/90

baytron WR-15 E bend silver plated

125

.

3V-90

baytron WR-15 v-band device - (2 micrometers)

250

. .

QRU320

channel microwave corp. WR-15 brass block

call

VB (2) ..

KU920V

Control Data WR-15 & P-Band micrometer device

250

VB

1" load

custom microwave / generic WR-15 one inch load  click to enlarge

125

qty

1.5" load

custom microwave / generic WR-15 one and a half inch - gold plated load similar to Hughes  45614H-1000

125

18

2" straight section

custom microwave / generic WR-15 two inch straight section (gold plated painted black)  click to enlarge

125

qty

25020

Flann Microwave Instruments Ltd. WR-15 variable attenuator micrometer read  (domestic USA sales only) -image-

375

SOLD SOLD

25230

Flann Microwave Instruments Ltd. WR-15 directional coupler 3-way power splitter -4.8 dB each arm +/- 0.3 dB balance  (domestic USA sales only) -image

750

1 v-band

WR-15 e-bend

GHZ MIC WR-15 (domestic USA sales only) unpainted copper/brass

100

3 v-band

WR-15 h-bend

GHZ MIC WR-15 (domestic USA sales only) unpainted copper/brass

100

2 v-band

WR-15 1.75"

GHZ MIC WR-15 (domestic USA sales only) unpainted copper/brass 1.75 straight section.

100

1 v-band

85100V

Hewlett-Packard WR15 V Band Millimeter-Wave Source Module 50-75 GHz

14,000

.. In Stock

V365A

Hewlett-Packard HP V365A WR-15 v band isolator

749

see 45114H-1002A  SOLD

11518

Hitachi WR-15 precision direct reading variable attenuator (used)

999

HPVMdL

M1513

Hitachi WR-15 precision 0-50 dB variable attenuator

499

1  Q-B vm

M2210

Hitachi WR-15 direct reading frequency meter -image- 50-75 GHz

599

1 DD4D3

M2522

Hitachi WR-15 power sensor  50-75 GHz

599

1 DD4D3

M2609

Hitachi WR-15 detector

499

1DD4D3

M3501

Hitachi WR-15 sliding short, micrometer

225

1 v-band

M3704

Hitachi WR-15 4 port -image-

350

3 v-band
44096H Hughes EDD WR-15 source -image- -image-

call

3 .
44802H Hughes EDD WR-15 mmw detector?

850

1 .
44706H Hughes EDD WR-15 mmw modulator (domestic USA sales only)

350

clicktoenlarge
45114H-1000 Hughes EDD WR-15 full band isolator  (3) (domestic USA sales only)

475

(3)
45214H-1000 Hughes EDD WR-15 ferrite modulator  (2) (domestic USA sales only)

375

clicktoenlarge
45394H-1200 Hughes MPD WR15 Matched Hybrid Tee, 50-72 GHz, 0.5 dB balance (domestic USA sales only)

750

1
45724H-1200 Hughes MPD WR15 precision attenuator  (domestic USA sales only)

1500

1 DD4
45734H-1200 Hughes MPD WR15 level set attenuator  (domestic USA sales only)

500

SOLD SOLD
47324H-1111 Hughes  WR-15 DETCTOR

500

1 .
47324H-1211 Hughes  WR-15 DETCTOR

500

2 .
47444H-1002A Hughes MPD WR-15 mixer

850

1 .
M103A Microlab/FXR WR-15 v-band slotted section

600

.. .
M164A Microlab/FXR WR-15 v-band precision attenuator

750

 CAR91
M206B Microlab/FXR WR-15 v-band detector with micrometer tuner

350

CAR69
M206C Microlab/FXR WR-15 v-band detector with micrometer tuner

400

CAR69
DBB-310 Micro-Tel Corp. WR-15 w/MMA-5  50-70 GHz crystal mount type N

450

1
DRA-15-R0000 Millitech WR-15 v band precision direct reading variable attenuator (domestic USA sales only)  DD4 (2)

1500

HPVMd1L

45114H-1000

Millitech  Hughes

-catalog-

WR-15 Full Band Isolator, 25 dB isolation, 1.8 dB insertion loss (domestic USA sales only) -image- 2+

475

  click to enlarge8v-band

45324H-1306

Millitech WR-15 v-band 6 dB coupler (domestic USA sales only) -image-

450

2 v-band

45324H-1310

Millitech WR-15 coupler 10 dB (domestic USA sales only)

495

(1) vaband

45514H-1002

Millitech WR-15 v-band remote controlled w/g switch with controller -picture-(domestic USA sales only)

1250

3 QVM
45724H-1000 Millimeter Wave Products (Hughes)Millitech WR-15 v band attenuator (domestic USA sales only)  DD4 (2)

1500

45734H-1200

Millitech WR-15 variable attenuator micrometer 0-25 dB (domestic USA sales only) -image-

500

SOLD SOLD

47774H-1100

Millitech WR-15 diode power sensor (with power meter and cable) (domestic USA sales only)

1750

bench .

CMT-15

Millitech WR-15 Magic Tee -data- (domestic USA sales only)

750

SOLD .

FXA-15-R03G0

Millitech WR-15 fixed attenuator 1.5"  (domestic USA sales only)

150

3

FXA-15-R06G0

Millitech WR-15 fixed attenuator 1.5"  (domestic USA sales only)

150

3

FXA-15-R40G0

Millitech WR-15 fixed attenuator 1.5"  (domestic USA sales only)

175

1

LSA-15-R0000

Millitech WR-15 level set attenuator w/micrometer adjustment  (domestic USA sales only)

500

SOLD SOLD
MWA-15-1R86S Millitech

-catalog-

WR-15 motorized waveguide attenuator V-band and controller w/GPIB -image- (domestic USA sales only)

SOLD

SOLD SOLD
MWP-15-RSSXL Millitech

-catalog-

WR-15 MIXER

 (domestic USA sales only)

CALL

v-bandVM .
NSS-22-R1500 Millitech WR-15 noise  -image-

call

lost

SWS-15-R0200

Millitech v band transition (new)

100

sold sold

NC5115 opt5

Quinstar WR-15 noise source w/isolator 28 v

750

(2) v bsnf

QBX-5723-LE

Quinstar WR-15 Frequency Lockable Source (Cf = 57 GHz) (domestic USA sales only) -image-

1500

1DD2

QBX-6323-LE

Quinstar WR-15 61.5 - 64.2 GHz  Frequency Lockable Source  (domestic USA sales only) -image-

1500

1DD2

DBB-614-LE-2

S D WR15 SPDT 28 v. switch (used) 50-75 GHz -image- -image-

SOLD

SOLD

.

DBB-612AE-2

S D WR15 TRANSFER SWITCH  28v. (used) 50-75 GHz -image- -

SOLD

SOLD .

DBB-614-RE2

S D WR15 28v SPDT switch (new) 50-75 GHz -image- -image- (domestic USA sales only)

800

SOLD SOLD
SM15-4PL1-T Sector Microwave Ind. 75-AB WR-15 50-75 GHz switch V band 28 volt (mating DC connector not included) -data- -image- (domestic USA sales only)

750

SOLD .

TN-164

Signalite Inc. WR15 noise source w/ modulator and termination (domestic USA sales only)

call

CAR78 .

M3-62F

Spacek Labs Mixer   (domestic USA sales only-end user certificate required--image

2700

2 v-band .

M62-1

Spacek Labs Mixer (domestic USA sales only-end user certificate required-image

2000

2 v-band .
6" dish Structural Technology Inc. WR-15 waveguide dish antennae

call

wr10
DBB-210 Systron Donner WR-15 silver waveguide section with flanges Length 72" (6ft)

1450

1available
DBB-224 Systron Donner WR-15  E-bend

100

1available
DBB-234 Systron Donner WR-15  H-bend

100

2available
DBB-274 Systron Donner WR-15 2" 90 degree twist

125

1available
WM782V Tektronix Waveguide mixer 50GHz to 75GHz frequency range, -110dBm sensitivity, ± 3db frequency response, 25db typical conversion loss, wr-15 waveguide connector -image-

1500

.

TRG  WR-15 v band H bend

100

. .

B510-25

TRG  WR-15 precision v-band atten. (in wood box!)

750

. .

B550-25

TRG  WR-15 v-band frequency meter  (in wood box!)

550

.. .

BB740-18

TRG WR-15 v-band slotted line w/gage (in wood box!)

500

. .

V110-115

TRG  WR-15 v band 60 GHz isolator

100

. .

V110-120

TRG  WR-15 v band 55 GHz isolator

100

. .

V112-116

TRG  WR-15 v band 60  GHz isolator

100

. .

V130

TRG  WR-15 v band polarization switch?

CALL

. .

V510

TRG  WR-15 v band variable precision attenuator as-is

325

. .

V510

TRG  WR-15 v band variable precision attenuator good condition

425

(2) VMd9

V520

Control Data TRG WR-15 variable 0-20 dB attenuator uncalib.

225

1

V526-20

TRG  WR-15 v band dual directional coupler

425

. .

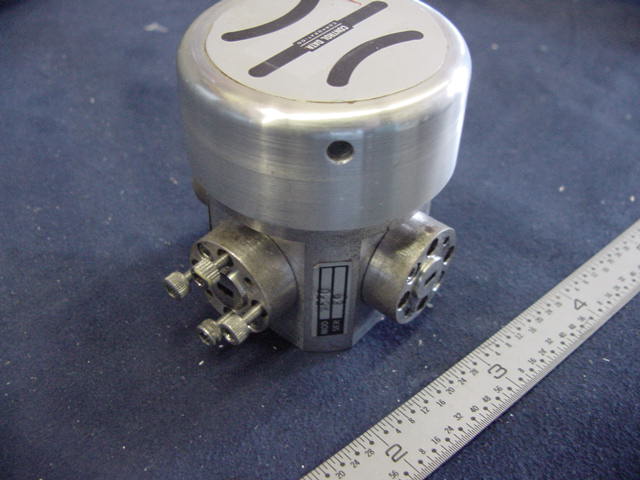

V530

Control Data  TRG WR-15 manual 4-pos. 4-port switch H-plane

395

2 see TRG also

V531-69

TRG  WR-15 49.9 - 75 GHz v band freq. meter

425

. .

V551

TRG  WR-15 551V v band frequency meter -image- 50-75 GHz

599

SOLD SOLD

V551-52

TRG WR-15 50-75 GHz frequency meter -image-

595

. .

V551-77

TRG WR-15 50-75 GHz frequency meter

595

VMd9

V553-10

TRG  WR-15 10 dB coupler v band

200

SOLD SOLD

V553-30

TRG  WR-15 30 dB coupler v band

250

1 v-band

V559-20

TRG  WR-15 20 dB coupler

325

1 v-band

V559-3

TRG  WR-15 3 dB coupler

425

1 v-band

V561-10

TRG  WR-15 10 dB coupler

275

. .

V561-20

TRG  WR-15 20 dB coupler

275

1+ .

V590

TRG WR-15 v-band sliding short micrometer

225

4 v-band

V605

TRG  WR-15 v band mixer

call

. .

V620

TRG WR-15 E-H plane tuner Micrometer drives

275

1 v-band

V640

TRG WR-15 4 port -image-

350

2 v-band

V650

TRG WR-15 3 port -image-

350

2 v-band

V660

TRG  WR-15 v band E bend

100

.. .

V890

TRG  WR-15 v band horn

500

SOLD .

V895-27

TRG  WR-15 load

150

1

V965

TRG  WR-15 v band tunable device

225

2 .

VSE-7401AD

Varian WR-15 solid state amplifier

call

bench .

VSE-7401AE

Varian WR-15 solid state amplifier

call

bench .

.

. .

.

. .
