SMALL WAVEGUIDE PARTS
WR 12
waveguide 60-90 GHz ID .122" x .061"
WR 10
waveguide 75 - 110 GHz
WR 8 Waveguide 90-140
GHz waveguide ID .080" x .040"
WR
7 Waveguide 110-170 GHz waveguide ID .065" x .0325"
WR
5 Waveguide 140-220 GHz waveguide ID .051" x .0255"
WR
4 Waveguide 170-260 GHz waveguide ID .043" x .0215"
WR
3 Waveguide 220-325 GHz waveguide ID .034" x .017"
All parts on this page are in stock now!
(All
items on this page are offered for domestic USA sales only)
This table is sorted manually by manufacturer. NOTE:
Send
us an email
if you would like a
button added to a specific item.
| APTEC |
. |
ELECTRONICS |
. |
. |
. |
| WAVEGUIDE |
. |
Inventory
Price List |
price |
qty
loc |
buy
now |
| Model |
Manufacturer |
Item
Description |
ea. US $
|
. |
. |
10-1860 |
Aerowave |
WR-10
(domestic
USA sales only) 45 degree E bend --
(available) |
175 |
CAR75 |
|
580D/716 |
Alpha Industries |
WR-06
(domestic
USA sales only) TERMINATION NOS |
call |
(3) (2)CAR112 |
. |
660D-716 |
Alpha Industries |
WR-06
(domestic
USA sales only) E BEND NOS |
call |
(2) (2)CAR112 |
. |
670D-716 |
Alpha Industries |
WR-06
(domestic
USA sales only) H BEND NOS |
call |
(2)CAR112 |
. |
681D-RH/716 |
Alpha Industries |
WR-06
(domestic
USA sales only) TWIST 1.0" NOS |
call |
(2) CAR112 |
. |
690D-2.00/716 |
Alpha Industries |
WR-06
(domestic
USA sales only) 2.0" NOS |
call |
(2( CAR112 |
. |

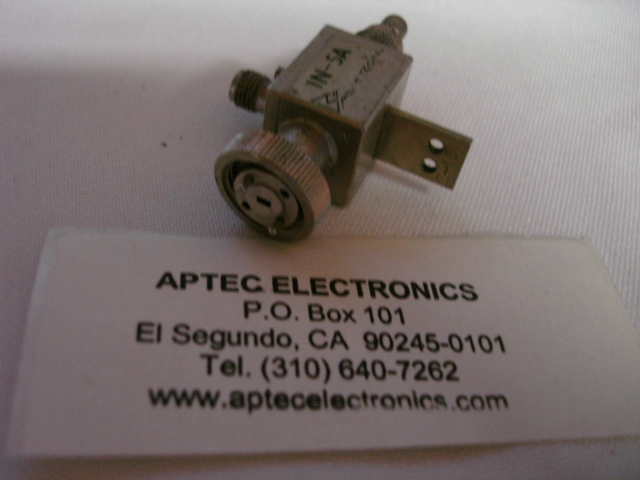

1N-5A |
Baytron |
WR-8 (domestic
USA sales only) SMA device -image- |
call |
1 |
. |
Antenna |
Generic |
WR-10
(domestic
USA sales only) antenna gold
plated 2 available -image- |
750 |
2 |
|
H bend |
Generic |
WR-10
(domestic
USA sales only) H-bend
silver 90 degree |
175 |
CAR75 |
|
H bend |
Generic |
WR-10
(domestic
USA sales only) H-bend
silver 45 degree |
175 |
- |
|
1.2" twist 90 degree |
Generic |
WR-10
(domestic
USA sales only) 1.2
inch silver twist 90 degree (2 avail) |
175 |
CAR75 |
|
|
1" section |
Generic |
WR-6 (domestic
USA sales only) one inch gold
section |
100 |
1 |
|
MFMA3W/10 |
MDT |
(domestic
USA sales only) frequency
changer? WR28 - WR10 |
call |
CAR75 |
. |
MFMA3W/14 |
MDT |
(domestic
USA sales only) frequency
changer? wr28-wr10 |
call |
CAR75 |
. |
164W |
TRG |
(domestic
USA sales only) WR-10 power
divider |
call |
CAR75 |
small wg. |
E70 |
TRG |
(domestic
USA sales only) micrometer
adjustable detector (diode missing) |
call |
1 |
small wg. |
G822-24 |
TRG / Alpha Industries |
(domestic
USA sales only) 220 GHz dish
antennae (new in crate) |
1750 |
1 |
SOLD |
